Designline  |  SKU: CW616

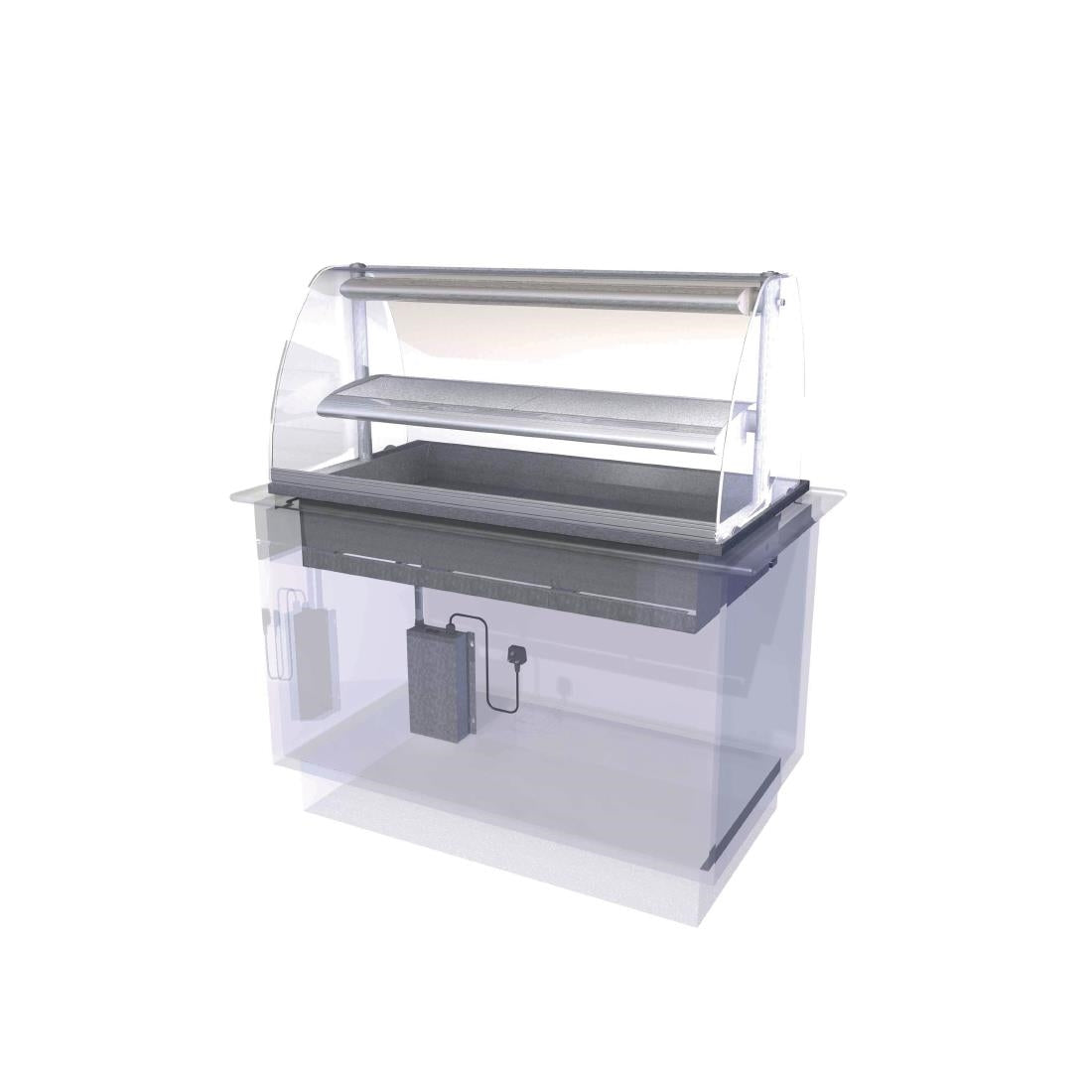

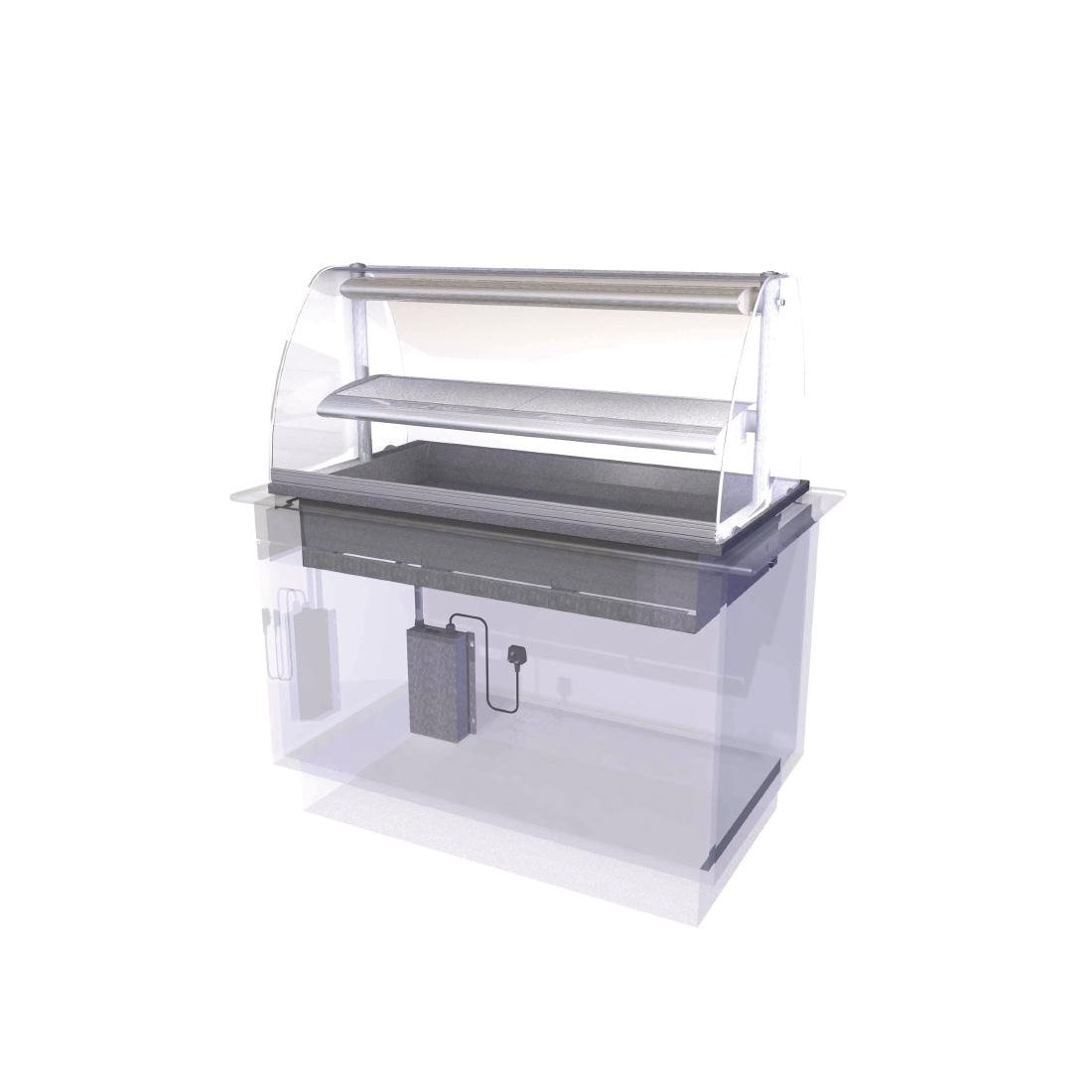

Designline Drop In Heated Serve Over Counter HDL3

£3,891.57 exc. VAT (£4,669.88 incl. VAT)

£4,639.99 exc. VAT (£5,567.99 incl. VAT)

Product Features

  • Curved display in bright polished steel and aluminium profile
  • Gantry fitted with curved full height toughened glass sneeze screen and side glass for food protection. Glass tilts forward in a locking hinge for ease of cleaning
  • 24 hour operation as standard
  • Assisted service application
  • Features gantry mounted digital temperature display, base heat control panel and top heat control by dimmer switch (to operator side of display)
  • Supplied with lifting kit for installation and concealed control box with a 2M flexible electrical lead and 3 pin UK plug top (13 Amp, 230v 2.9KW supply)
  • Curved glass profile is designed to complement other units within the Designline range
  • Food display examples : Long term holding (2 - 4 hours) - beans, bacon, curry, chilli dishes, pasta in sauce. Short term holding (15-20 mins) - omelettes, eggs
  • Features an inclined heated well area and overhead heated mid shelf for eye level food presentation
  • Product illumination/ surface heat provided by infra red quartz heat lamps to each 1/1Gn area. Lamps are housed within an elliptical profile gantry and mid shelf
  • Base heat is provided to each 1/1Gn area by individual heater mats, mounted under the steel well surface

Useful Information

  • Dimensions: 535(H) x 1175(W) x 660(D)mm
  • Material: Curved Toughened Glass, Stainless Steel and Aluminium
  • Capacity: 3 x 1/1 GN
  • Voltage: 230V

Usually Dispatched in 5-6 Weeks
  • Product Code: CW616
  • Brand: Designline
  • Capacity: 3 x 1/1 GN
  • Dimensions: 535(H) x 1175(W) x 660(D)mm
  • Installation: Y
  • Material: Curved Toughened Glass, Stainless Steel and Aluminium
  • Plug fitted: Yes
  • Power: 2.9kW, 230V, 13A
  • Supplier ref: HDL3
  • Temp range: 85ºC to 110ºC
  • Voltage: 230V
  • Warranty: 1 Year
  • Weight: 102kg
  • Curved display in bright polished steel and aluminium profile
  • Gantry fitted with curved full height toughened glass sneeze screen and side glass for food protection. Glass tilts forward in a locking hinge for ease of cleaning
  • 24 hour operation as standard
  • Assisted service application
  • Features gantry mounted digital temperature display, base heat control panel and top heat control by dimmer switch (to operator side of display)
  • Supplied with lifting kit for installation and concealed control box with a 2M flexible electrical lead and 3 pin UK plug top (13 Amp, 230v 2.9KW supply)
  • Curved glass profile is designed to compliment other units within the Designline range
    • Designline

    Designline Drop In Heated Serve Over Counter HDL3

    Pack Size

    Feature 1

    Curved display in bright polished steel and aluminium profile

    Feature 2

    Gantry fitted with curved full height toughened glass sneeze screen and side glass for food protection. Glass tilts forward in a locking hinge for ease of cleaning

    Feature 3

    24 hour operation as standard

    Feature 4

    Assisted service application

    Feature 5

    Features gantry mounted digital temperature display, base heat control panel and top heat control by dimmer switch (to operator side of display)

    Feature 6

    Supplied with lifting kit for installation and concealed control box with a 2M flexible electrical lead and 3 pin UK plug top (13 Amp, 230v 2.9KW supply)

    Feature 7

    Curved glass profile is designed to complement other units within the Designline range

    Feature 8

    Food display examples : Long term holding (2 - 4 hours) - beans, bacon, curry, chilli dishes, pasta in sauce. Short term holding (15-20 mins) - omelettes, eggs

    Feature 9

    Feature 10

    Features an inclined heated well area and overhead heated mid shelf for eye level food presentation

    Feature 11

    Product illumination/ surface heat provided by infra red quartz heat lamps to each 1/1Gn area. Lamps are housed within an elliptical profile gantry and mid shelf

    Feature 12

    Base heat is provided to each 1/1Gn area by individual heater mats, mounted under the steel well surface

    Feature 13
