Kubus  |  SKU: CW636

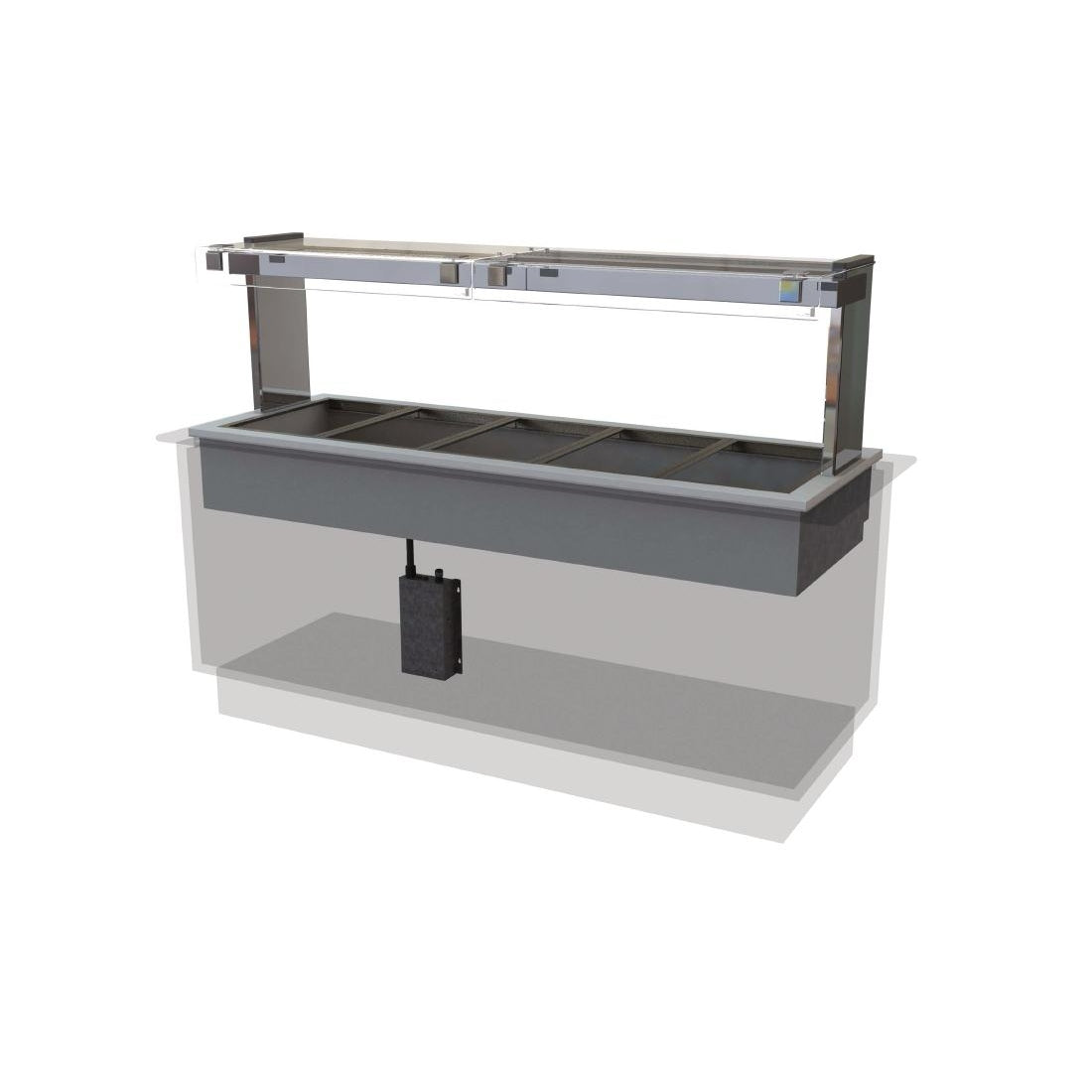

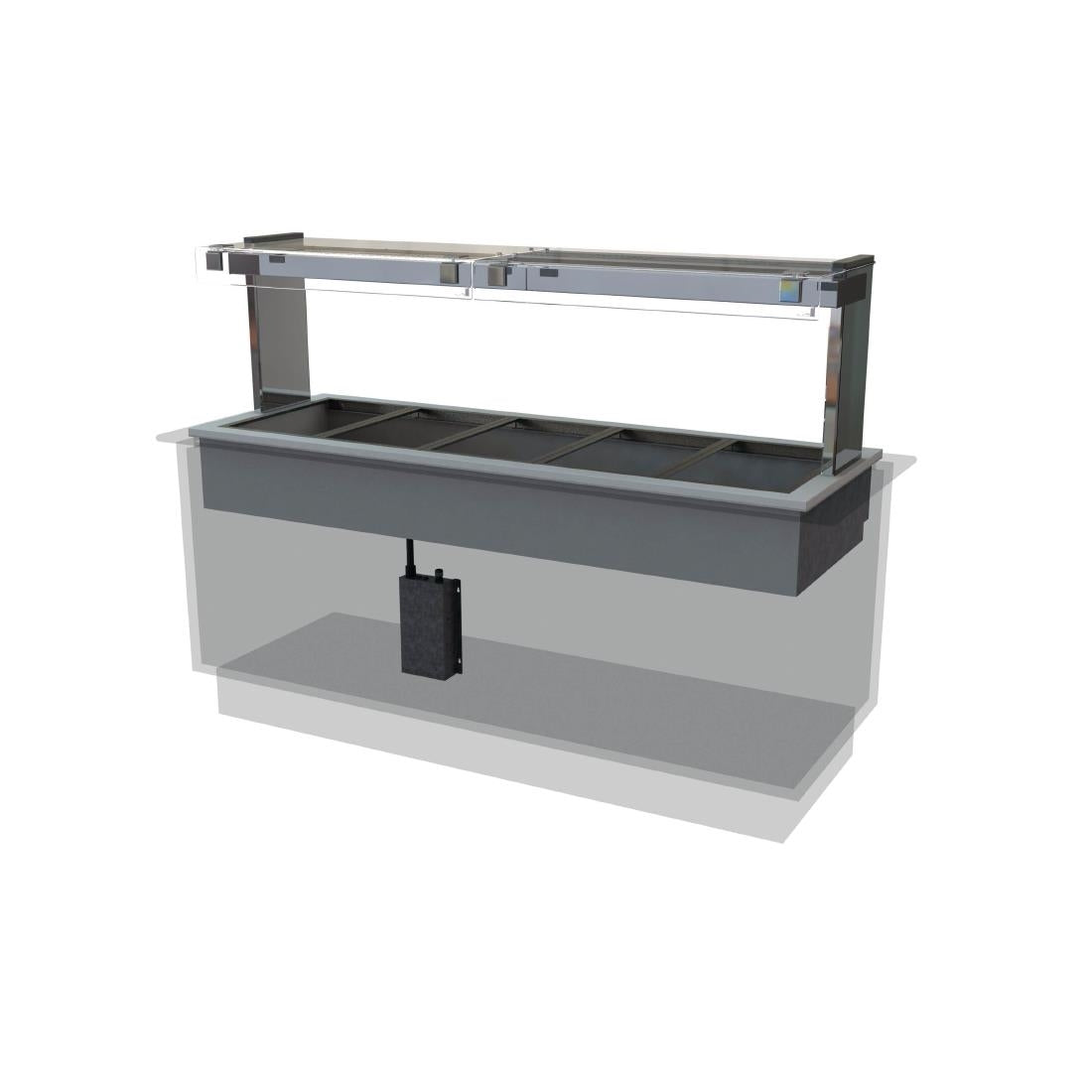

Kubus Drop In Dry Heat Bain Marie KHBM5

£2,849.18 exc. VAT (£3,419.02 incl. VAT)

£3,599.99 exc. VAT (£4,319.99 incl. VAT)

Product Features

  • Rectangular gantry in bright polished steel, powder coated black gantry side panels and aluminium profile
  • Gantry fitted with flat toughened glass sneeze screen to customer side of display, for food protection
  • 24 hour operation as standard
  • Self help application
  • Features gantry mounted digital temperature display, base heat control panel and top heat control by dimmer switch (to operator side of display)
  • Supplied with lifting kit for installation and concealed control box with a 2M flexible electrical conduit for hard wiring to a 20 Amp, 230v 4.0KW supply
  • Flat glass profile is designed to complement other units within the Kubus range
  • Product illumination/ surface heat provided by infra red quartz heat lamps to each 1/1 GN section, housed within a rectangular profile gantry
  • Base heat is provided to each 1/1 GN section by individual heater elements
  • Supplied with individual 1/1 gastronorm container support collars, which accept various sized GN containers up to 150mm deep

Useful Information

  • Dimensions: 540(H) x 1875(W) x 660(D)mm
  • Material: Stainless Steel & Aluminium
  • Capacity: 5 x 1/1 GN
  • Voltage: 230V

Usually Dispatched in 5-6 Weeks
  • Product Code: CW636
  • Brand: Kubus
  • Capacity: 5 x 1/1 GN
  • Dimensions: 540(H) x 1875(W) x 660(D)mm
  • Installation: Y
  • Material: Stainless Steel & Aluminium
  • Power: 4kW, 230V, 20A
  • Supplier ref: KHBM5
  • Temp range: 85ºC to 110ºC
  • Voltage: 230V
  • Warranty: 1 Year
  • Weight: 71kg
  • Rectangular gantry in bright polished steel, powder coated black gantry side panels and aluminium profile
  • Gantry fitted with flat toughened glass sneeze screen to customer side of display, for food protection
  • 24 hour operation as standard
  • Self help application
  • Features gantry mounted digital temperature display, base heat control panel and top heat control by dimmer switch (to operator side of display)
  • Supplied with lifting kit for installation and concealed control box with a 2M flexible electrical conduit for hard wiring to a 20 Amp, 230v 4.0KW supply
  • Flat glass profile is designed to compliment other units within the Kubus range
    • Kubus

    Kubus Drop In Dry Heat Bain Marie KHBM5

    Pack Size

    Feature 1

    Rectangular gantry in bright polished steel, powder coated black gantry side panels and aluminium profile

    Feature 2

    Gantry fitted with flat toughened glass sneeze screen to customer side of display, for food protection

    Feature 3

    24 hour operation as standard

    Feature 4

    Self help application

    Feature 5

    Features gantry mounted digital temperature display, base heat control panel and top heat control by dimmer switch (to operator side of display)

    Feature 6

    Supplied with lifting kit for installation and concealed control box with a 2M flexible electrical conduit for hard wiring to a 20 Amp, 230v 4.0KW supply

    Feature 7

    Flat glass profile is designed to complement other units within the Kubus range

    Feature 8

    Feature 9

    Feature 10

    Product illumination/ surface heat provided by infra red quartz heat lamps to each 1/1 GN section, housed within a rectangular profile gantry

    Feature 11

    Base heat is provided to each 1/1 GN section by individual heater elements

    Feature 12

    Supplied with individual 1/1 gastronorm container support collars, which accept various sized GN containers up to 150mm deep

    Feature 13
