Designline  |  SKU: CW658

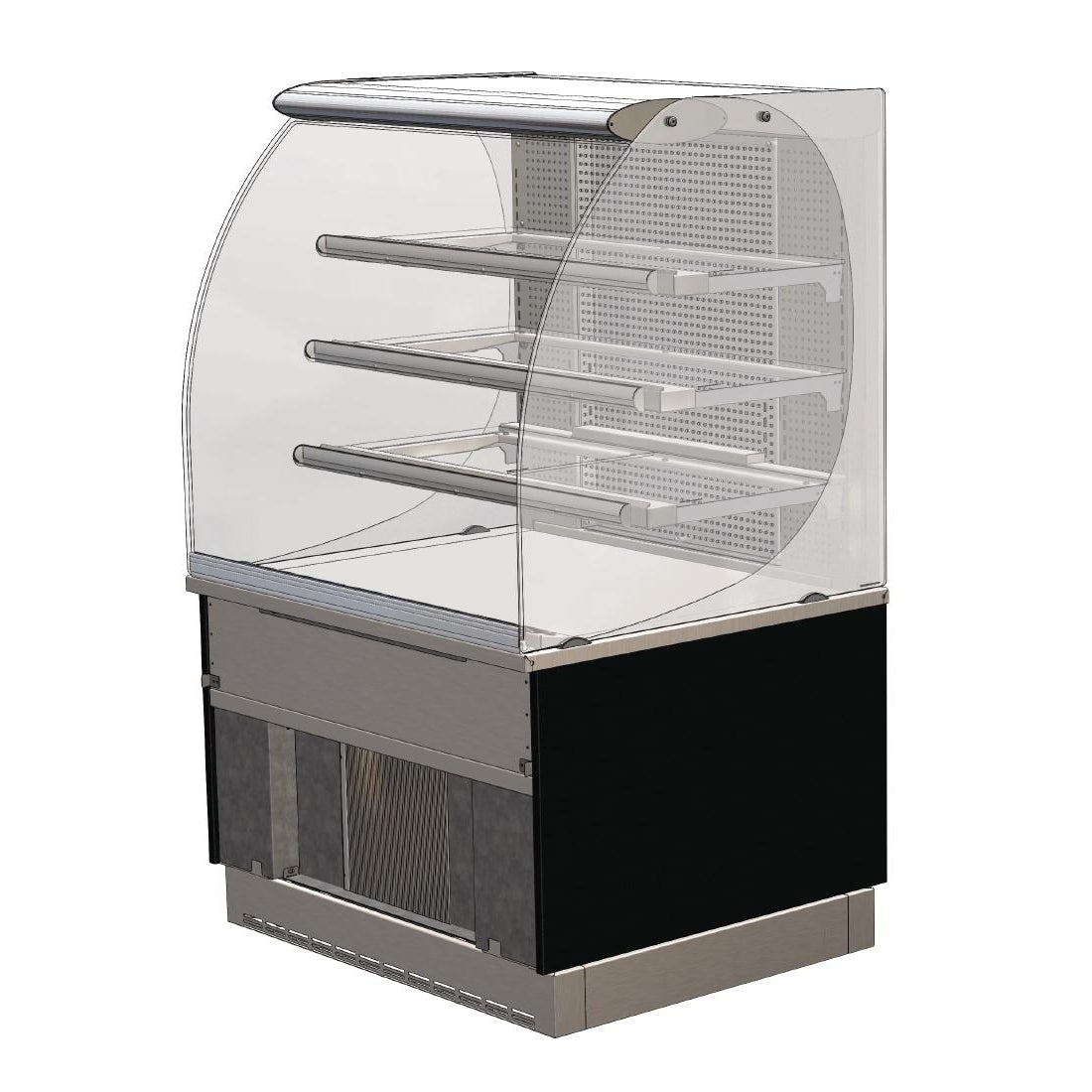

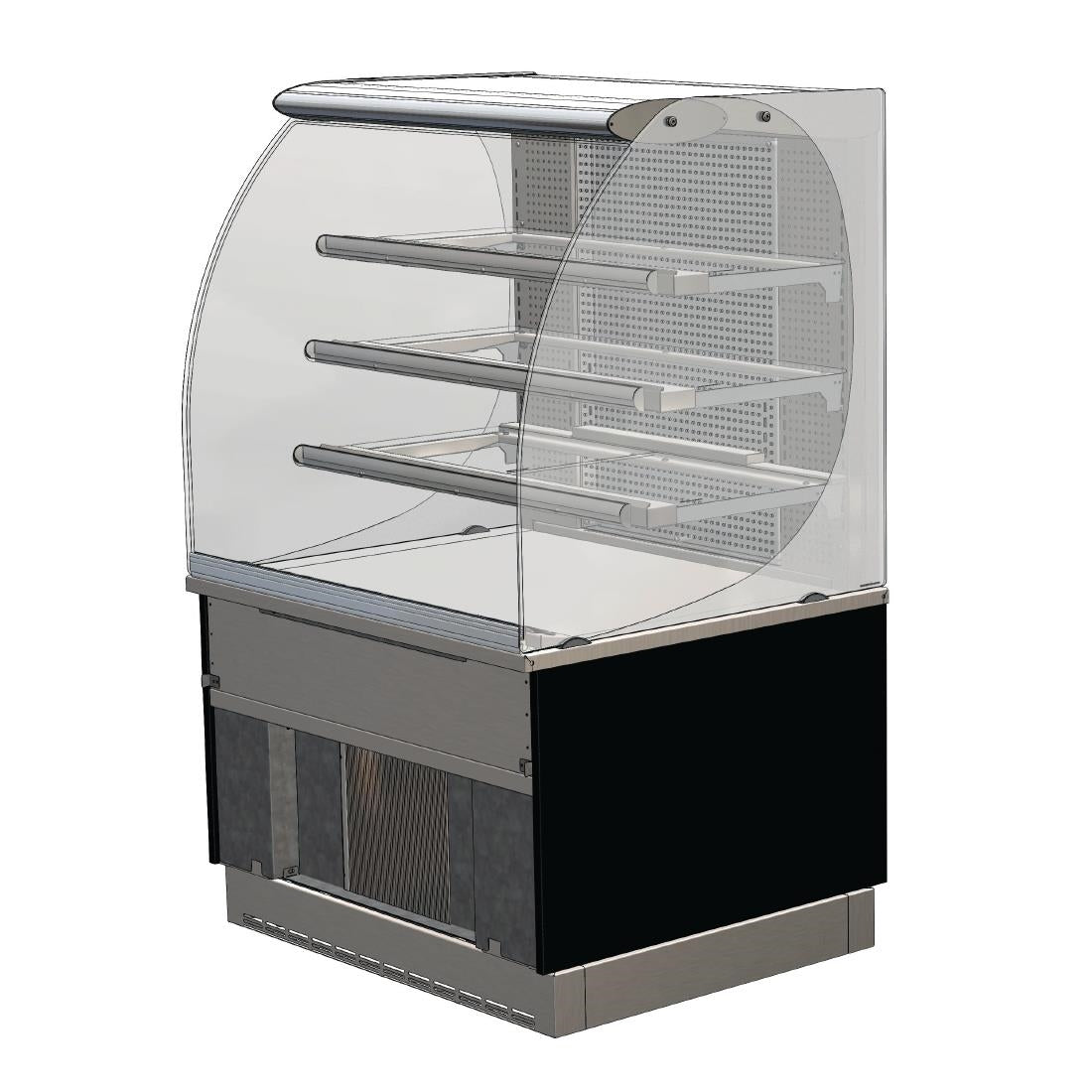

Designline Drop In Slimline Multideck Assisted Service 600mm

£5,708.30 exc. VAT (£6,849.96 incl. VAT)

£6,399.99 exc. VAT (£7,679.99 incl. VAT)

Product Features

  • Elliptical curved gantry in polished steel & aluminium, in a toughened glass front screen and side panels. Black powder coated steel base unit. (Fascia panel optional)
  • Each chilled shelf features diffused lighting, product stop and 40mm tall 'point of sale' display/ticket strip
  • Gantry is fitted with toughened glass full height front screen and side glass protection to the customer side of the display
  • Additional product illumination from diffused lighting within the curved profile gantry
  • Curved glass profile is designed to complement other units within the Designline range
  • Features eye level gantry mounted digital temperature display and control panel (to customer side of display)
  • Complete with locking castors that have a combined adjustable central foot for levelling, foot adjustment spanner, steel kick plinths and a 2m lead and 3 pin UK plug top
  • Special-to-order. Non-returnable
  • Drinks display examples: bottled, canned or carton drinks, water, lemonade, fruit juice. Food display examples : Pies, pasties, sausage rolls, sandwich fillings.
  • Features 3 chilled toughened glass display shelves with adjustable height and angle
  • The 600mm long deck display area & shelves are chilled by energy efficient hydrocarbon refrigerant (r290)
  • Freestanding for assisted service application. (1 hinged rear door to display)

Useful Information

  • Dimensions: 1467(H) x 600(W) x 750(D)mm
  • Material: Curved Toughened Glass, Stainless Steel and Aluminium
  • Capacity: 247.3Ltr
  • Voltage: 230V

Usually Dispatched in 6-8 Weeks
  • Product Code: CW658
  • Brand: Designline
  • Dimensions: 1467(H) x 600(W) x 750(D)mm
  • Installation: Y
  • Material: Curved Toughened Glass, Stainless Steel and Aluminium
  • Plug fitted: Yes
  • Power: 1.23kW, 230V, 13A
  • Refrigerant: R290
  • Supplier ref: PC6ASHT
  • Temp range: 2ºC to 5ºC
  • Voltage: 230V
  • Warranty: 1 Year
  • Weight: 145kg
  • Elliptical curved gantry in polished steel & aluminium, in a toughened glass front screen and side panels. Black powder coated steel base unit. (Fascia panel optional)
  • Each chilled shelf features diffused lighting, product stop and 40mm tall 'point of sale' display/ticket strip
  • Gantry is fitted with toughened glass full height front screen and side glass protection to the customer side of the display
  • Additional product illumination from diffused lighting within the curved profile gantry
  • Curved glass profile is designed to complement other units within the Designline range
  • Features eye level gantry mounted digital temperature display and control panel (to customer side of display)
  • Complete with locking castors that have a combined adjustable central foot for levelling, foot adjustment spanner, steel kick plinths and a 2m lead and 3 pin UK plug top
