Designline | SKU: CW619 | Alt. SKU: HP4

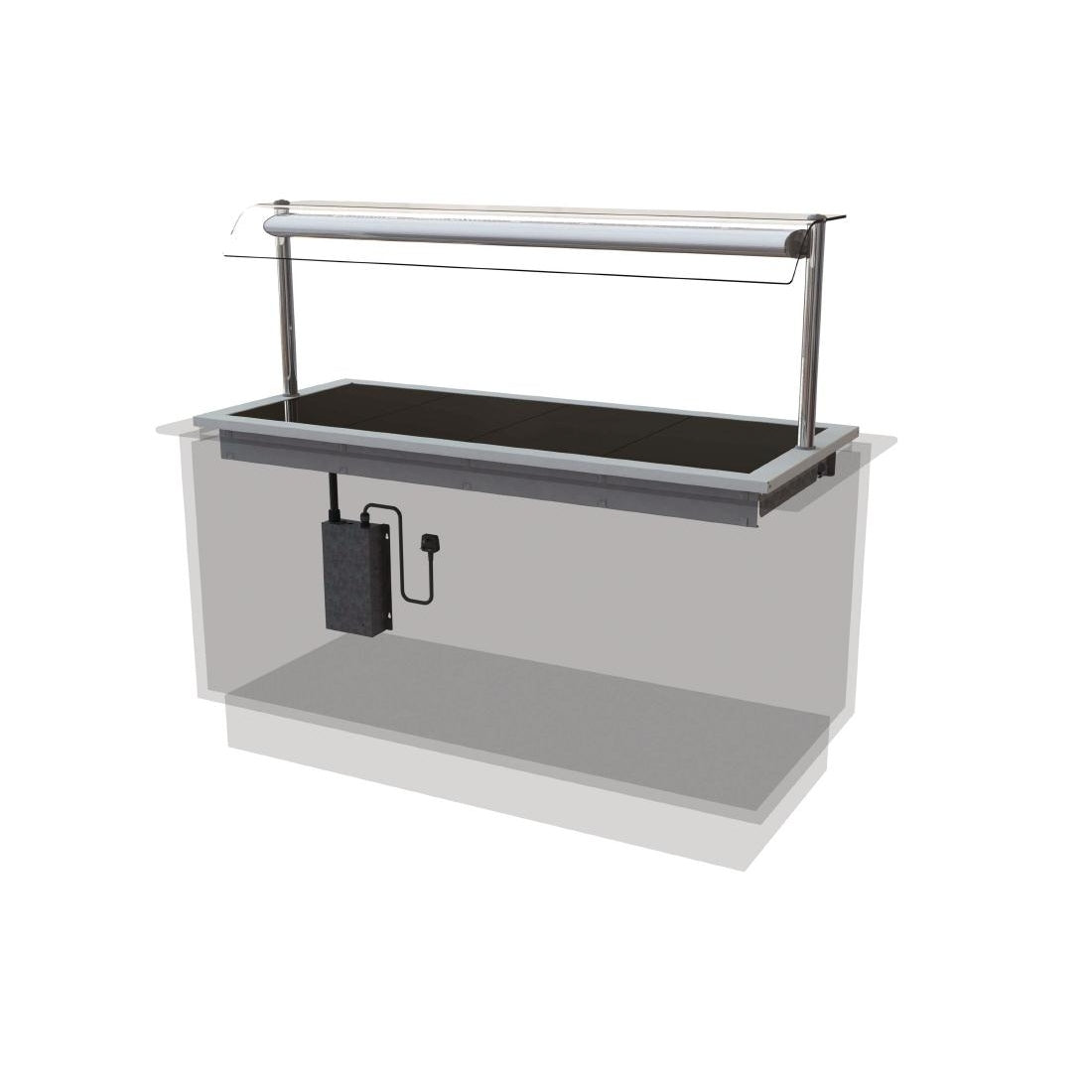

CED Designline Drop In Ceran Glass Hotplate HP4

£2,431.06 exc. VAT (£2,917.27 incl. VAT)

£2,939.99 exc. VAT (£3,527.99 incl. VAT)

Product Features

  • Presentation area heated evenly from underneath by individual heater mat elements
  • Gantry-mounted digital temperature display is easy to monitor
  • Simple base heat control panel and top heat control by dimmer switch
  • Smart curved display in bright polished steel with aluminium profile
  • Curved glass profile complements other Designline units
  • 24-hour operation as standard
  • Supplied with lifting kit for installation
  • Comes with concealed control box and UK 3-pin plug top on a 2m lead
  • Infrared quartz heat lamps provide surface heat and illumination to each 1/1GN area
  • Gantry fitted with curved toughened sneeze screen glass for food protection
  • Lamps within the gantry showcase food displays

Useful Information

  • Dimensions: 535(H) x 1525(W) x 660(D)mm
  • Material: Curved Toughened Glass, Stainless Steel and Aluminium
  • Capacity: 4 x 1/1 GN
  • Temperature Range: 85°C to 110°C
  • Voltage: 230V

Warranty

  • Warranty: 1 Year

CED Designline Drop In Ceran Glass Hotplate HP4 is backordered, please check stock details for dispatch times.

Be the first to get yours by pre-ordering now!


Display, illuminate, heat and protect pre-cooked food with CED's elliptically shaped Designline self help ceran glass hotplate drop in display. This 4/1 Gn size hot display features a 4/1Gn heated ceran glass area which accept various sized Gn flat bottomed dishes and containers. The display fits into a pre-formed cut out made in a countertop . The self help superstructure is made from bright polished steel and alluminum curved profiles, with curved, toughened glass sneeze screen protection to the customer side of the display. Product illumination/ surface heat is provided by infra red quartz heat lamps, housed in the elliptical profile gantry. Base heat and surface heat can be adjusted & 'locked' from the operator side of the gantry, by digital temperature display ( control panel ) and adjustable dimmer switch, mounted at eye level. The display has 24 hour operation & is factory set to hold food core at 85 deg. C. Modular heater mat elements under the heated ceran glass give even heat spread & the ceran presentation surface makes for easier cleaning. The display comes complete with lifting kit for installation and is supplied with a concealed control box & plug top on a 2M lead. GN's Sold Separatley.
